8.66" x 1476'(220mmx450m) Enhanced Wax Thermal Transfer Ribbon, Core 1", Black, Ink Outside

WISHLIST
Enhanced Wax Thermal Transfer Ribbon
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Click here to request free sample ribbon

    Description:

    This 8.66" x 1476' (220mm x 450m) Ribbon is designed for high-performance industrial thermal transfer printers and applications that require printing labels wider than 8 inches.

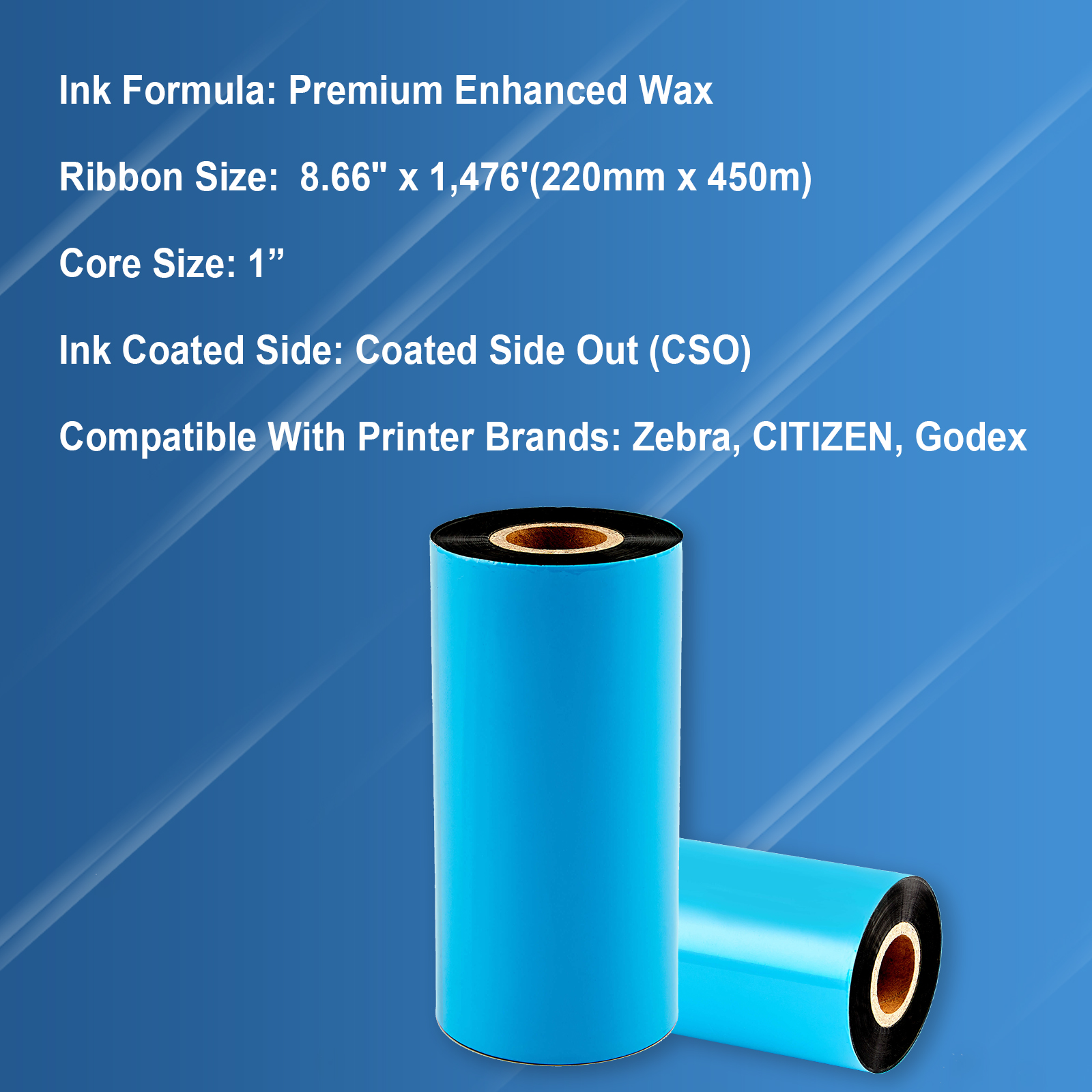

    • Basic Information: 8.66" x 1476'(220mmx450m), Core size 1", CSO (Coated Side Out), without the notch.

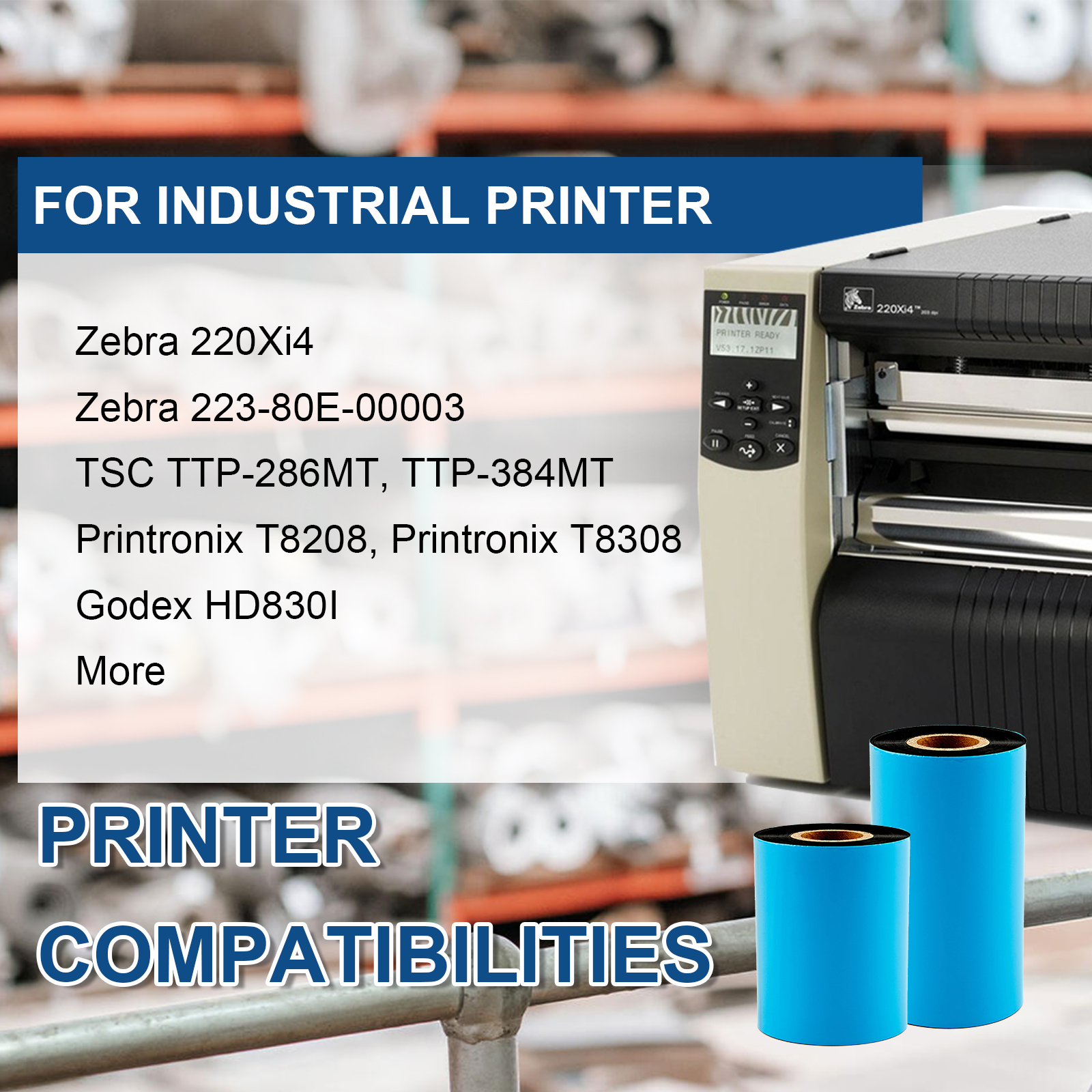

    • Printer Compatible: Compatible with a 1-inch core roller, Zebra Brand Industrial Printer 220Xi4, 223-80E-00003, TSC TTP-286MT, TSC TTP-384MT, Printronix T8208, Printronix T8308, Godex HD830I Thermal Printers using (CSO) INK SIDE OUT RIBBON.
    • Print Durability: Clear Rotated Bar Codes, Sharp Text and Graphics, High-Density Printing, Good Scratch Resistance, and Extends Print Head Life.
    • Applications: Ideal for large shipping and inventory labels; labeling large containers, pallets, and equipment in manufacturing and distribution centers; Printing large price tags and promotional signage that require high visibility.
    • Recommended Label Type: Coated Paper, Plain Paper, Synthetic Paper, Tag
    • Suitable Label Sizes: Up to 8.66 inches(220 mm) in width, labels sized 6" x 4", 8" x 5", and other custom dimensions that fit within the ribbon width.

    Technical Specification:

    8.66” x 1476' Enhanced Wax Printer Ribbon
    Material Enhanced Wax Case Count 1 Roll
    Ribbon Width 8.66"(220mm) Core Material Paper Core
    Ribbon Length 1476' (450m) Total Thickness 7.2±0.5 μm
    Core Size
    		 1" Ink Melting Point 72 ℃
    Ink Side Coat side out(CSO), without notch Extra Core Without Extra Core
    Ink Color Black Printing Speed
    		 2-6 IPS
    Shipping Weight
    		 2.18 lb
    		 Shipping Dimensions
    		 9.25 x 3.2 x 3.2 in

    Thermal Transfer Ribbon Calculate:

    • 1 Roll of 8.66" x 1476' ribbon ==prints approximate 4400 pieces of 6" x 4' labels
    • 1 Roll of 8.66" x 1476' ribbon ==prints approximate 3500 pieces of 8" x 5' labels

    Maintenance Tips:

    • Normally, a sealed thermal transfer ribbon can have a shelf life lasting up to 1 to 2 years if stored under proper conditions
    • Store ribbons in a cool, stable environment away from direct sunlight. Extremes of temperature should be avoided as it can cause the material of the ribbon to either soften or get brittle and also cause distinction for the printing
