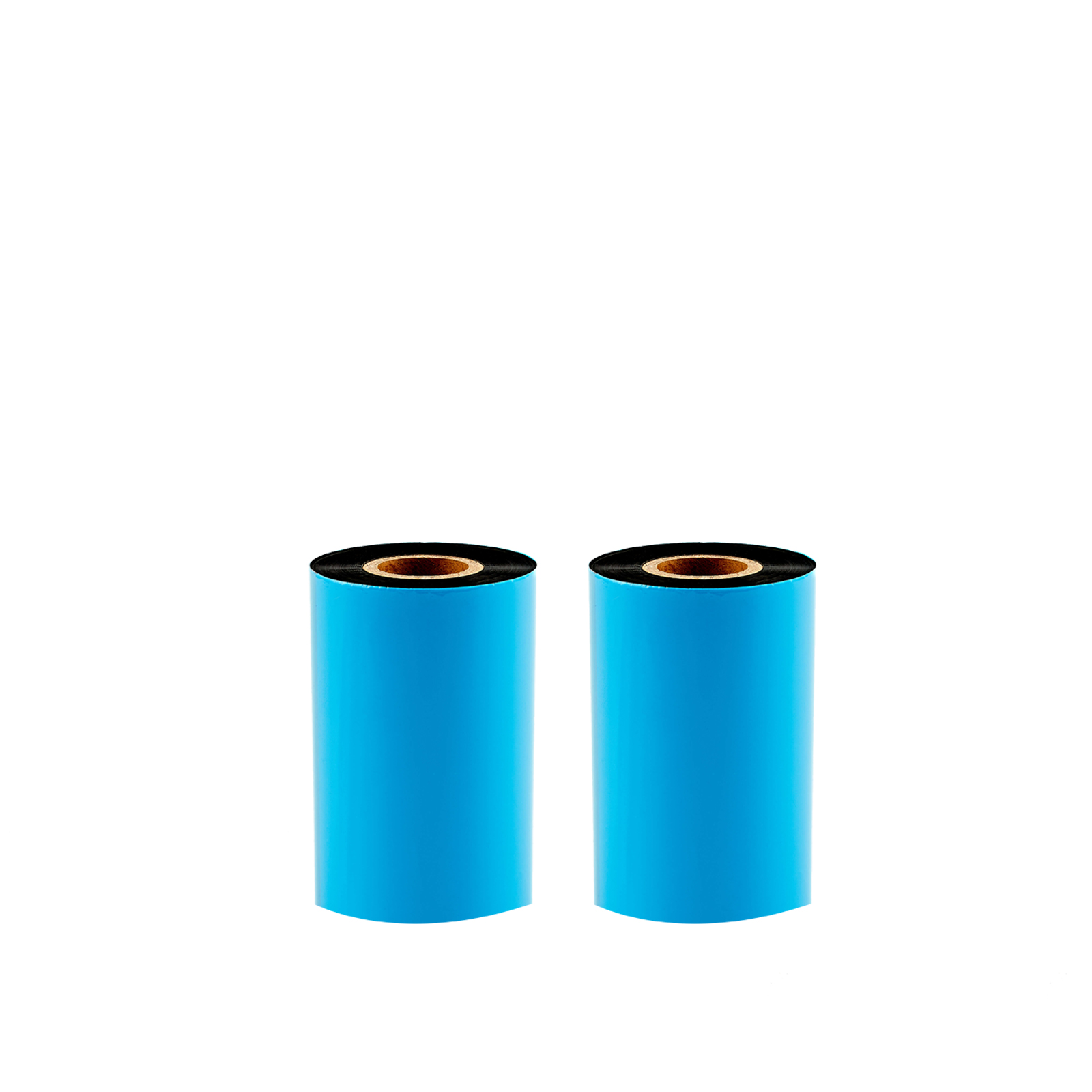

2 Rolls 3.14" x 1476'(80mmx450m) Wax/Resin Thermal Transfer Ribbon, Core 1", Black, Ink Outside

WISHLIST
Wax/Resin Thermal Transfer Ribbon
Quantity
ADD TO CART
BUY IT NOW
Detail

Click here to request free sample ribbon

Description:

The 3.14" x 1476'(80mmx450m) wax/resin thermal transfer ribbon is an excellent choice for diverse labeling needs in retail, logistics, and manufacturing industries. Its combination of durability and print quality makes it ideal for producing reliable, high-quality labels that can withstand various operational challenges and environmental conditions.

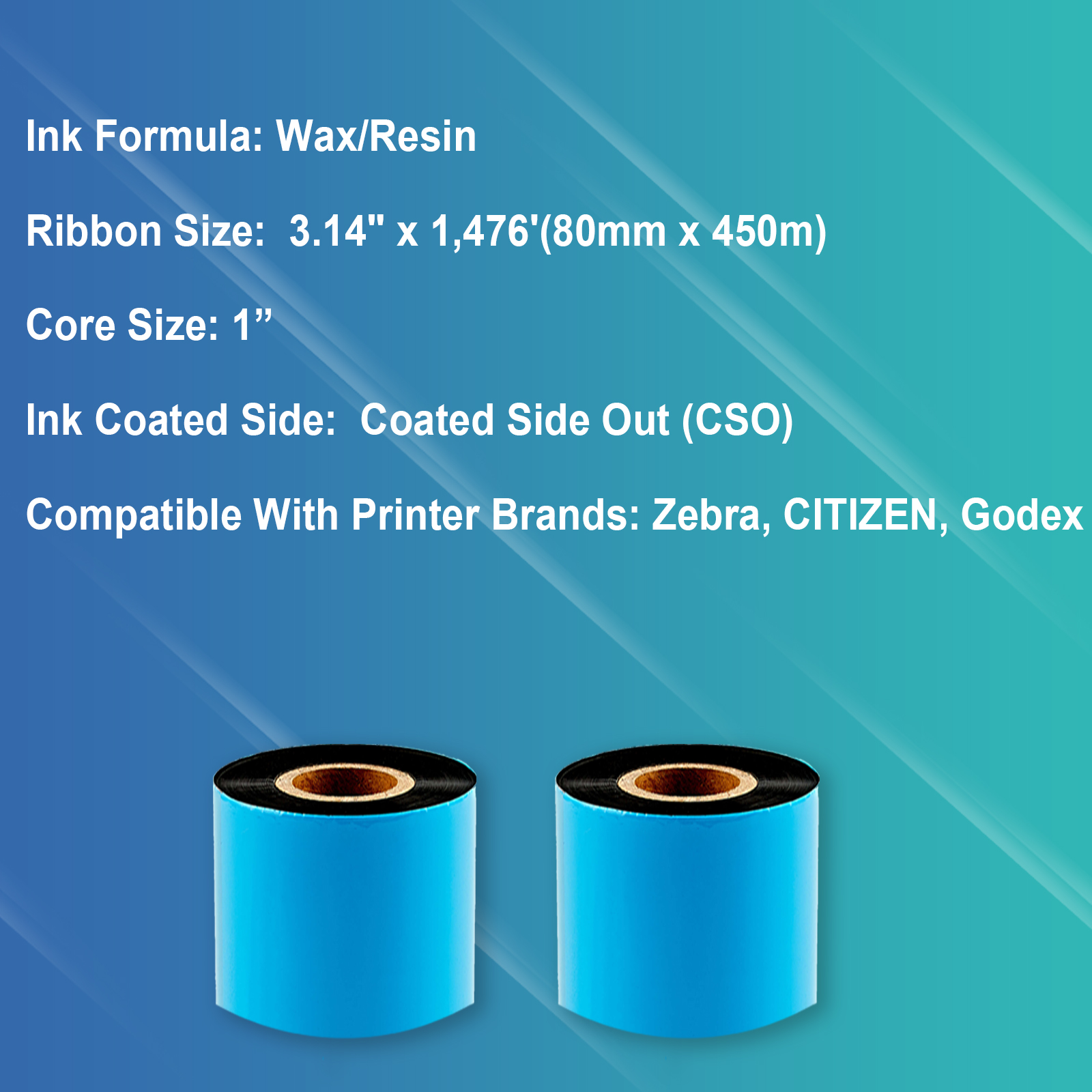

  • Basic Information: 3.14" x 1476'(80mmx450m), Core size 1", CSO (Coated Side Out), without the notch.
  • Printer Compatible: Compatible with a 1-inch core roller, Zebra Brand Industrial Printer S4M, Z4M, 105SE, 105S, 105SL, 105SLPlus, 160S, S500, S600, Z4000, ZT200, ZT220, ZT230, ZT410, ZT420, ZT610, ZM400, ZM600, 110Xi4, 140Xi4, 170Xi4, 220Xi4, RZ400, RZ600, R110Xi4 printers and Godex ZX420, ZX430, EZ2050, EZ2150, EZ2250, EZ2350, ZX1200i, ZX1300i, ZX1600i, GX4200i, GX4300i, GX4600i, TEC, INTERMEC, CITIZEN, SATO, TSC, ARGOX Thermal Printers using (CSO) INK SIDE OUT RIBBON.
  • Print Durability: Wax/Resin Ribbon combines the benefits of wax and resin, providing excellent resistance to smudging, scratching, and fading, making it suitable for demanding environments. Delivers sharp and clear text and graphics, ideal for detailed designs and high-resolution barcodes.
  • Applications: Suitable for printing labels exposed to harsh environments, including chemicals, signposts, laboratories, printed circuit boards, industrial refrigerators and freezers, tires, storage, etc.
  •     Retail: Commonly used for price tags, product labels, and promotional materials that need to be clear and appealing.
        Logistics and Warehousing: Effective for shipping labels, barcodes, and inventory tracking labels that must withstand handling and environmental factors.
        Manufacturing: Useful for labeling products, components, and packaging, ensuring durability in industrial settings.
  • Recommended Label Type: Standard and weatherproof thermal transfer labels, Coated Paper, Plain Paper, Matte Synthetic Label, Tag.
  • Suitable Label Sizes:  Accommodates labels up to 3 inches in width, making it suitable for sizes such as  3" x 2",  2" x 2", and other custom formats.

Technical Specification:

3.14” x 1476' Wax/Resin Printer Ribbon

Material Wax/Resin Case Count 2 Rolls
Ribbon Width 3.14"(80mm) Core Material Paper Core
Ribbon Length 1476' (450m) Total Thickness 7.2±0.5 μm
Core Size
1" Ink Melting Point 72 ℃
Ink Side Coat side out(CSO), without notch Extra Core Without Extra Core
Ink Color Black Printing Speed
2-10 IPS
Heat Resistance
4
Scratch Resistance
4.5
Solvent Resistance
3
Label Applicability
5

Thermal Transfer Ribbon Calculate:

  • 1 roll of 3.14" x 1476' ribbon can print approximately 8,100 labels measuring 3" x 2"

  • 1 roll of 3.14" x 1476' ribbon can print approximately 8,100 labels measuring 2" x 2“

  • 1 roll of 3.14" x 1476' ribbon can print approximately 15,000 labels measuring 3" x 1"

Maintenance Tips:

  • If stored correctly, a sealed thermal transfer ribbon can typically last for 1 to 2 years. Ribbons should be kept in a cool and stable environment, away from sunlight. It’s important to steer clear of extreme temperatures, which can cause the ribbon material to become either soft or brittle and affect printing.
