2 Rolls 2.36" x 1476'(60mmx450m) Wax/Resin Thermal Transfer Ribbon, Core 1", Black, Ink Outside

WISHLIST
Wax/Resin Thermal Transfer Ribbon
Quantity
ADD TO CART
BUY IT NOW
Detail

Click here to request free sample ribbon

Description:

The 2.36" x 1476' (60mm x 450m) wax/resin thermal transfer ribbon is designed for applications that require durable and high-quality printing in smaller label formats.

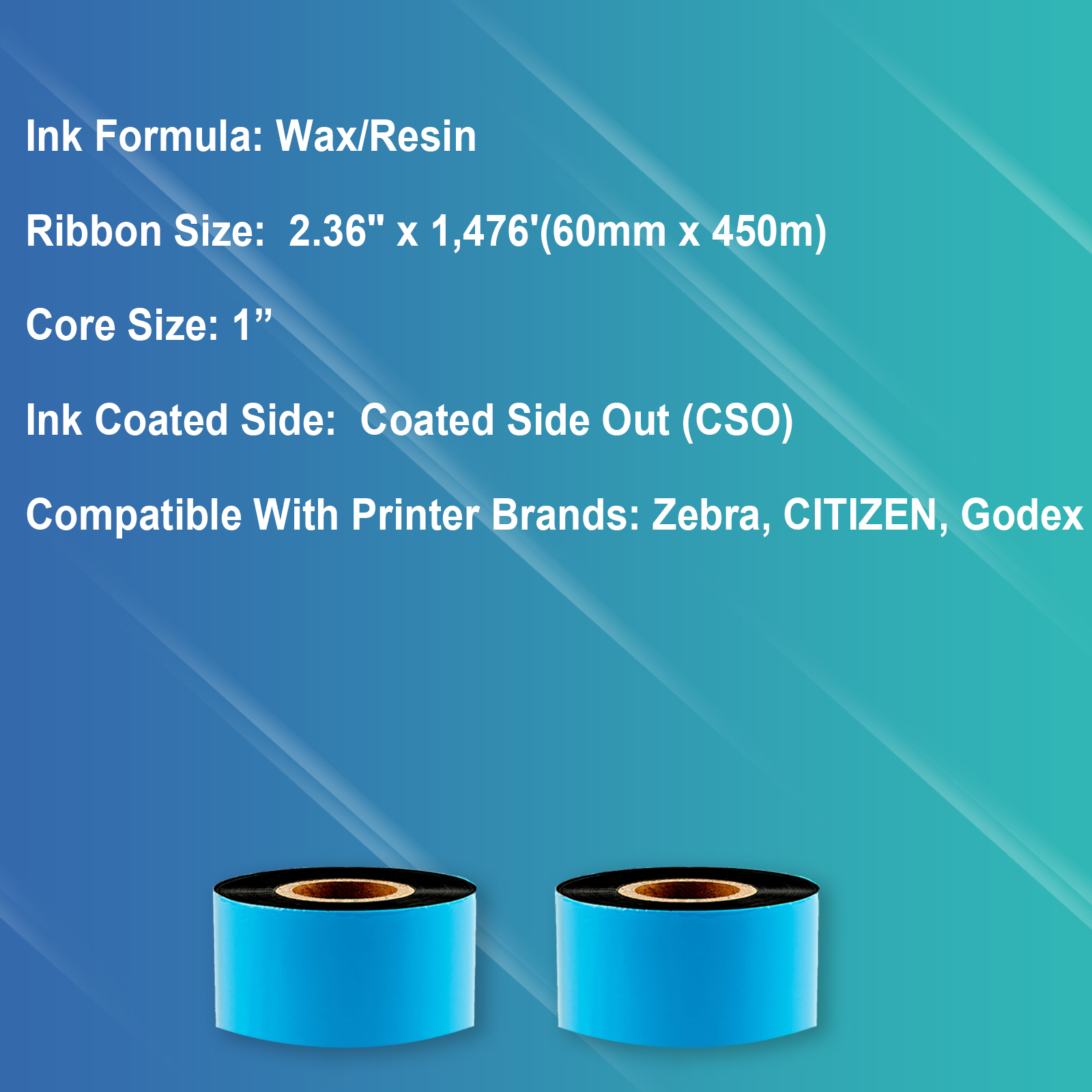

  • Basic Information: 2.36" x 1476'(60mmx450m), Core size 1", CSO (Coated Side Out), without the notch.
  • Printer Compatible: Compatible with a 1-inch core roller, Zebra Brand Industrial Printer S4M, Z4M, 105SE, 105S, 105SL, 105SLPlus, 160S, S500, S600, Z4000, ZT200, ZT220, ZT230, ZT410, ZT420, ZT610, ZM400, ZM600, 110Xi4, 140Xi4, 170Xi4, 220Xi4, RZ400, RZ600, R110Xi4 printers and Godex ZX420, ZX430, EZ2050, EZ2150, EZ2250, EZ2350, ZX1200i, ZX1300i, ZX1600i, GX4200i, GX4300i, GX4600i, TEC, INTERMEC, CITIZEN, SATO, TSC, ARGOX Thermal Printers using (CSO) INK SIDE OUT RIBBON.

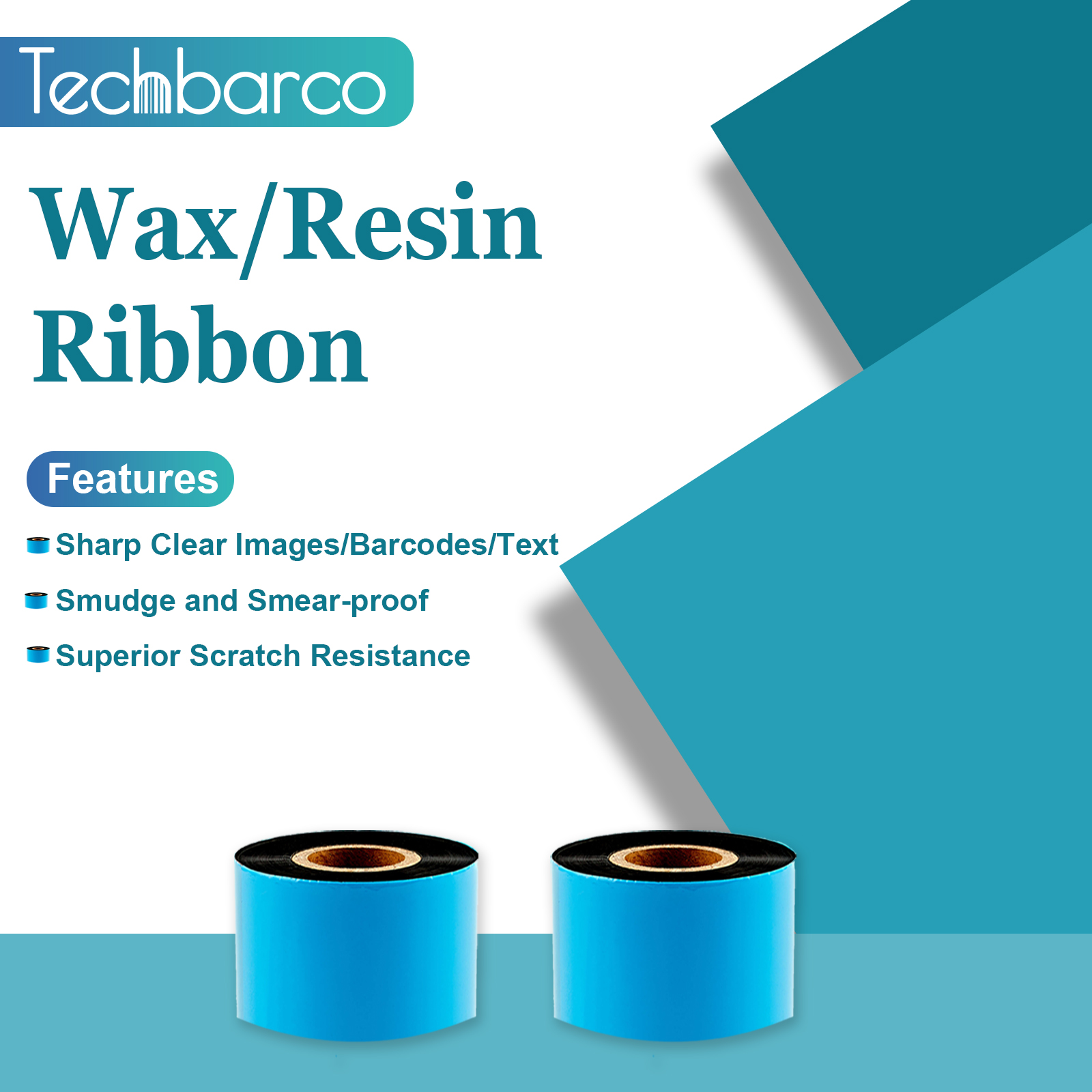

  • Print Durability: Wax/Resin Ribbon combines the advantages of both wax and resin, providing enhanced resistance to smudging, scratching, and fading, making it suitable for various challenging environments. Produces sharp and clear text and graphics, ideal for intricate designs and high-resolution barcodes.
  • Applications: Suitable for printing labels exposed to harsh environments, including chemicals, signposts, laboratories, printed circuit boards, industrial refrigerators and freezers, tires, storage, etc.
  •     Retail: Commonly used for price tags, small product labels, and promotional materials that require clarity and visual appeal.
        Logistics and Warehousing: Effective for shipping labels, barcodes, and tracking labels that need to endure handling and environmental conditions.
        Healthcare: Suitable for labeling small medical devices, specimen containers, and pharmaceuticals, where accuracy and legibility are essential.
  • Recommended Label Type: Standard and weatherproof thermal transfer labels, Coated Paper, Plain Paper, Matte Synthetic Label, Tag.
  • Suitable Label Sizes:  Accommodates labels up to 2 inches in width, making it suitable for sizes such as  2" x 2",  2" x 1", and other custom formats.

Technical Specification:

2.36” x 1476' Wax/Resin Printer Ribbon

Material Wax/Resin Case Count 2 Rolls
Ribbon Width 2.36"(60mm) Core Material Paper Core
Ribbon Length 1476' (450m) Total Thickness 7.2±0.5 μm
Core Size
1" Ink Melting Point 72 ℃
Ink Side Coat side out(CSO), without notch Extra Core Without Extra Core
Ink Color Black Printing Speed
2-10 IPS
Heat Resistance
4
Scratch Resistance
4.5
Solvent Resistance
3
Label Applicability
5

Thermal Transfer Ribbon Calculate:

  • 1 roll of 2.36" x 1476' ribbon can print approximately 8,100 labels measuring 2" x 2"

  • 1 roll of 2.36" x 1476' ribbon can print approximately 15,000 labels measuring 2" x 1"

Maintenance Tips:

  • A sealed thermal transfer ribbon generally has a shelf life of 1 to 2 years if stored in the right conditions. Keep the ribbons in a cool, stable place and out of direct sunlight. Avoiding extreme temperatures is crucial, as they can lead to material degradation and hinder print quality.
