Direct Thermal vs. Thermal Transfer Printing: A Comprehensive Comparison

Any business that intends to bring its labeling processes up to better levels should be concerned with knowledge of the differences between various technologies of label printing, principally direct thermal and thermal transfer printing. Both have different strong points and applications. The paper will compare "direct thermal vs. thermal transfer" printing, covering their definitions, operation mechanics, and practical uses. In this regard, from the head-to-head comparison, you will learn how to evaluate features such as print quality, durability, cost-efficiency, and much more to make a great decision that best fits the needs of your business.

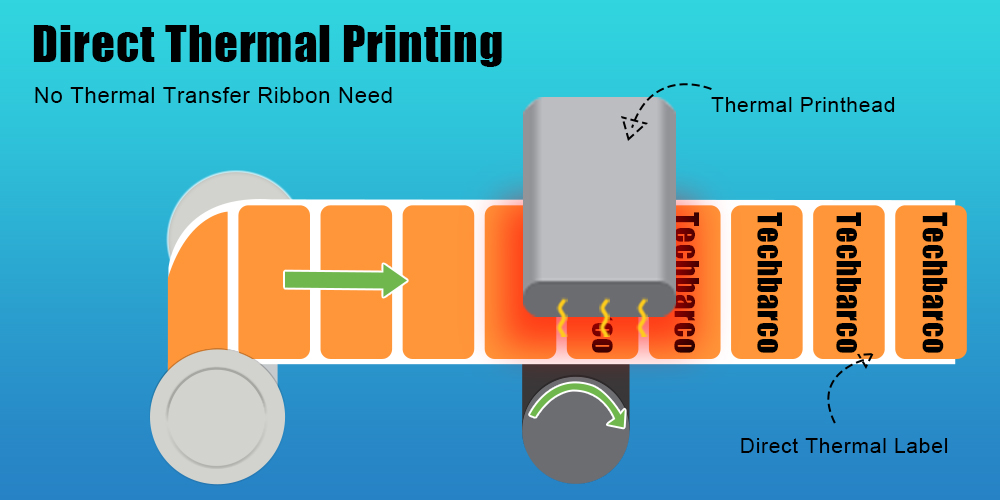

What is Direct Thermal Printing?

Probably one of the most popular methods of label production, direct thermal printing has earned wide acceptance for its efficiency and simplicity in operation. In other words, direct thermal technology prints by applying heat to parts of a specially coated, heat-sensitive paper-thereby directly turning those areas of the material into readable print without ink, toner, or ribbon.

1. How It Works

It relies on a thermal printhead that precisely applies heat onto the paper surface, causing a chemical reaction with the coating, which becomes dark and forms the image. This can produce images at high speed. Hence, you will often find direct thermal technology at work in receipt printing and ticketing applications.

2. Common Uses

Direct thermal print is ideal for short-term applications, such as shipping labels, receipts, and name tags. Its application is the most frequent since the technology simply produces printouts that are clear enough and concise, perfect for information that doesn't need to withstand long periods or harsh conditions.

3. Advantages

● Simplicity: Direct thermal printers are relatively simple. They have fewer moving parts and no ink or ribbon. The result is lower operating costs and less downtime.

● Speed: They're typically faster to first label, meaning they start printing more quickly once a job is sent to the printer.

● Print Quality: On barcodes and shipping labels, direct thermal provides superb readability.

4. Limitations

● Durability: Images produced by direct thermal printing are susceptible to fading when exposed to sunlight, heat, and other environmental factors.

● Material Sensitivity: The labels are prone to abrasion and can darken if rubbed or scratched, which might make them unsuitable for certain purposes.

● Limited Longevity: Since the print fades over time, this method isn't recommended for labels that need to last for extended periods.

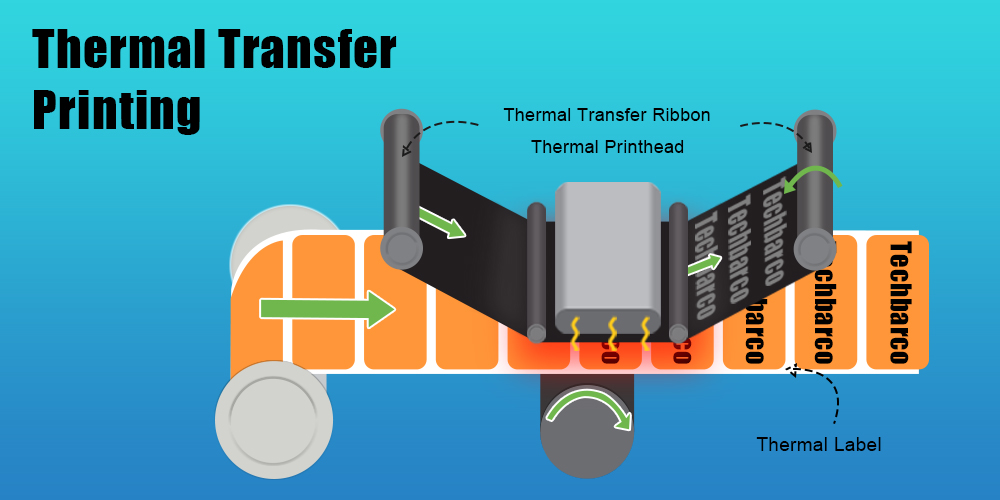

What is Thermal Transfer Printing?

Thermal transfer printing stands out as a durable and versatile option for label creation, suited to applications where longevity and resistance against environmental factors are essential. Unlike its direct thermal counterpart, this method makes use of a thermal ribbon in addition to the printer.

1. The Process Explained

In thermal transfer printing, heat from the printer's printhead melts ink from a ribbon onto the label or tag material, forming a bond that is more resistant to fading, smearing, and chemicals. The precision of the printhead allows for complex images and barcodes to be printed with high clarity.

2. Typical Applications

This method is perfect for creating long-lasting labels that need to endure tough conditions, such as outdoor exposure, extreme temperatures, or chemicals, making it the go-to technology for industrial, healthcare, and retail inventory labeling.

3. Benefits

● Durability: Labels created with thermal transfer print can last years without fading.

● Versatility: A wide range of materials can be used, including plastics and fabrics, allowing for varied applications.

● Quality: It produces crisp and high-definition prints suitable for detailed graphics and small text.

4. Drawbacks

● Costs: Thermal transfer printers and their supplies-such as ribbons-are more expensive upfront compared with direct thermal options.

● Maintenance: The printers contain more parts, like the ribbon, which may require more maintenance and replacement after a while.

● Complexity: A little more complex to set up and operate thermal transfer printers since there are more components involved and various settings.

Direct Thermal vs. Thermal Transfer

The following table compares direct thermal and thermal transfer printing technologies:

Criterion	Direct Thermal	Thermal Transfer
Print Quality & Resolution	Sharp for short-term; prone to fade/darken due to environmental exposure.	Consistent over time; less affected by environment.
Durability	Less durable, ideal for <1 year; sensitive to heat, light, abrasion.	Highly durable, withstands harsh conditions; suited for outdoor/long-term use.
Cost-Effectiveness	Lower upfront cost; higher ongoing media cost; minimal maintenance expenses.	Higher upfront cost; lower long-term costs due to less frequent label replacement.
Maintenance	Less frequent (mainly printhead cleaning/replacement).	More frequent (ribbon replacement, printhead cleaning).

How to Choose Between Direct Thermal and Thermal Transfer?

Determining the best label printing technology for your business involves considering several key factors, including volume needs, environmental conditions, longevity of labels, and cost implications.

● Volume Needs: For businesses that print large volumes of temporary labels-such as shipping labels or receipts-direct thermal is often a more efficient choice. This method eliminates the need for ribbons, which simplifies the process and speeds up production. Conversely, if your labeling needs involve creating durable labels in high volumes, such as inventory tags that must survive harsh environments, thermal transfer can be more cost-effective in the long run despite the initial investment.

● Environmental Conditions: The environment in which the labels will be used plays a crucial role in deciding between direct thermal and thermal transfer. For labels exposed to extreme temperatures, sunlight, or chemicals-conditions commonly found in manufacturing or outdoor settings-thermal transfer is usually mandatory due to its superior durability and resistance. However, for indoor applications with minimal exposure to harsh elements, direct thermal provides a sufficient and economical option.

● Longevity of Labels: If your application requires labels that last longer than a year or need to remain legible and intact under stressful conditions, thermal transfer is the appropriate choice. Its ability to withstand various environmental challenges ensures that labels remain functional and readable throughout their intended use. For less critical applications where label longevity is less of a concern, direct thermal might be the ideal, cost-saving alternative.

● Cost Considerations: Initial setup costs for direct thermal printing are generally lower, making it attractive for businesses looking to minimize upfront investments. However, the ongoing cost of thermal paper and potential issues with label durability could add hidden expenses. Thermal transfer printers, while requiring a higher initial outlay due to the need for specific ribbons and sometimes more expensive media, typically have lower long-term operational costs because of the durability of the printed labels.

Scenarios

● Retail: For point-of-sale systems that generate high volumes of receipts daily, direct thermal is preferable due to speed and efficiency.

● Warehouse Logistics: Thermal transfer is better suited for warehouse labels that track inventory moving through different climates and handling processes.

● Healthcare: In healthcare settings, patient wristbands benefit from thermal transfer printing because they require great detail and resistance to hand sanitizers and water.

Deciding Between Direct Thermal and Thermal Transfer

The choice between direct thermal and thermal transfer printing technologies is based on a company's unique needs. In its way, Direct thermal offers simplicity, speed, and cost efficiency for short-term labeling, which makes it perfect for applications like receipts and shipping labels. On the other hand, thermal transfer stands out because of its durability and versatility, which is appropriate for long-lasting labels used in strong conditions. Companies should consider diverse elements, such as volume, environment, label life, and cost considerations, and select the best technology that will suit operational needs to improve overall productivity and efficiency.Considering these factors, it is also crucial to examine the role of thermal transfer ribbons, which are key to the thermal transfer printing process, as they directly impact the shelf life and durability of printed labels. This examination will lead us seamlessly to delve deeper into "Thermal Transfer Ribbons: The Shelf Life and Durability", an article that explores how these ribbons contribute to the longevity and resilience of labeling in various industrial applications.
